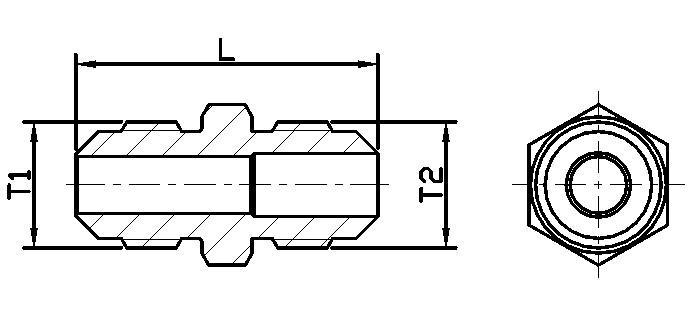

Adapter, Male Flare to Male Flare
| Item No. | L, mm | T1 | T2 |
| 27100201 | 50.00 | 1/4 NPT | 1/4 NPT |
| 27100207 | 50.00 | 1/4 BSP | 1/4 BSP |
| 27100203 | 36.00 | 1/4 NPT | 1/4 NPT |
| 27100105 | 32.00 | 7/16-20 UNF | 7/16-20 UNF |
| 27100106 | 34.00 | 7/16-20 UNF | 7/16-20 UNF |
| 27100101 | 40.00 | 7/16-20 UNF | 7/16-20 UNF |
| 27100204 | 46.00 | 5/8-18 UNF | 5/8-18 UNF |
| 27100102 | 43.00 | 5/8-18 UNF | 5/8-18 UNF |
| 27100103 | 32.00 | 1/2-16 BSF | 1/2-16 BSF |
| 27100107 | 35.70 | 1/2-16 BSF | 1/2-16 BSF |
| 27100104 | 40.00 | 1/2-16 BSF | 1/2-16 BSF |
| 27100205 | 30.00 | G 3/8 | G 3/8 |
| 27100206 | 38.00 | G 3/4 | G 3/4 |
| 27100202 | 33.00 | G 3/8 | 1/2-16 BSF |
| 27020101 | 22.00 | G 3/8 | G 3/8 |
| 27020102 | 32.00 | G 3/8 | 11/16-16 UN |
| 27020103 | 27.00 | G 3/8 | G 1/2 |
| 27020201 | 31.50 | 1/2-16 BSF | G 1/4 |
| 27020104 | 37.50 | 5/8-18 UNF | 3/8 NPT |
| 27020105 | 39.80 | G 3/8 | 1/2-16 BSF |
| 27010201 | 36.50 | 3/8 NPT | 5/8-18 UNF |
| 27010101 | 32.10 | 1/4 NPT | 7/16-20 UNF |
| 27010102 | 35.10 | 7/16-20 UNF | 7/16-20 UNF |
| 27010103 | 31.80 | 7/16-20 UNF | 1/2-16 UNF |
| 27010104 | 37.50 | 5/8-18 UNF | 5/8-18 UNF |
| 27010202 | 45.70 | 3/4 NPT | 5/8-18 UNF |
| 27010203 | 35.00 | 1/4 NPT | 1/4 NPT |
| 27010204 | 36.00 | 3/8 NPT | 3/8 NPT |
| 27010205 | 45.70 | 1/2 NPT | 3/4-16 UNF |
| 27010206 | 29.70 | 7/16-20 UNF | 7/16-20 UNF |
| 27010207 | 41.90 | 1/2 NPT | 5/8-18 UNF |
| 27010105 | 33.30 | 7/16-20 UNF | 3/8 NPT |
