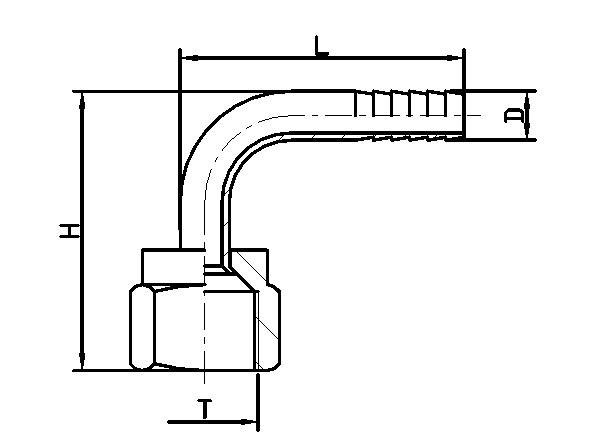

Barb Elbow to Swivel Nut
| Item No. | L, mm | H, mm | T | D, mm |
| 24010101 | 34.30 | 37.10 | 7/16-20 UNF | 7.20 |
| 24010102 | 40.90 | 40.70 | 5/8-18 UNF | 10.00 |
| 24010103 | 51.10 | 53.90 | 7/16-20 UNF | 10.00 |
| 24010104 | 35.80 | 33.50 | 5/8-18 UNF | 10.00 |
| 24020101 | 34.00 | 40.50 | 1/2-16 BSF | 7.20 |
| 24100101 | 57.30 | 43.30 | 5/8-18 UNF | 10.50 |
| 24010105 | 41.90 | 38.70 | 5/8-18 UNF | 7.20 |
