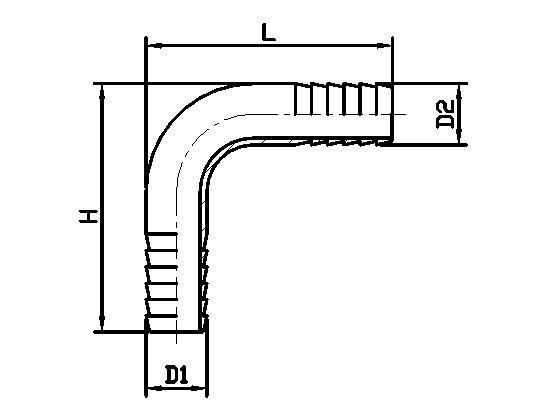

Barb Elbow
| Item No. | L, mm | H, mm | D1, mm | D2, mm |
| 22020101 | 47.60 | 33.30 | 7.10 | 10.00 |
| 22020301 | 35.00 | 35.00 | 7.20 | 7.20 |
| 22020102 | 79.40 | 79.40 | 13.80 | 13.80 |
| 22010101 | 33.00 | 33.00 | 7.20 | 7.20 |
| 22010102 | 40.60 | 40.60 | 10.00 | 10.00 |
| 22010103 | 77.50 | 77.50 | 13.70 | 13.70 |
| 22020103 | 48.00 | 48.00 | 10.30 | 10.30 |
| 22020104 | 42.00 | 42.00 | 7.00 | 7.00 |
| 22020105 | 48.00 | 60.00 | 13.00 | 13.00 |
| 22020106 | 78.00 | 78.00 | 12.40 | 12.40 |
| 22010104 | 35.00 | 41.00 | 10.30 | 7.20 |
| 22100101 | 61.80 | 61.80 | 13.50 | 13.50 |
