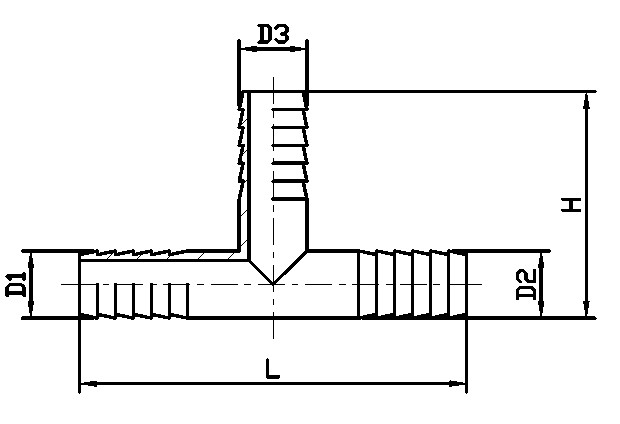

Barb Tee
| Item No. | L, mm | H, mm | D1, mm | D2, mm | D3, mm |
| 20020101 | 60.00 | 43.00 | 16.00 | 16.00 | 16.00 |
| 20010101 | 48.70 | 30.30 | 7.20 | 7.20 | 7.20 |
| 20010102 | 57.40 | 34.80 | 13.70 | 13.70 | 13.70 |
| 20010103 | 57.40 | 32.30 | 7.20 | 7.20 | 10.00 |
| 20020102 | 60.00 | 43.00 | 13.10 | 13.10 | 13.10 |
| 20020103 | 35.00 | 30.00 | 4.50 | 4.50 | 4.40 |
| 20020104 | 51.30 | 31.20 | 7.20 | 10.00 | 10.00 |
| 20020105 | 60.00 | 35.00 | 10.30 | 10.30 | 10.20 |
| 20020106 | 58.00 | 38.00 | 8.50 | 8.50 | 8.50 |
| 20020107 | 52.00 | 28.00 | 7.20 | 7.20 | 7.20 |
| 20020108 | 50.00 | 25.00 | 7.00 | 7.00 | 7.00 |
| 20020109 | 58.00 | 38.00 | 10.50 | 10.50 | 10.50 |
| 20020110 | 44.00 | 30.00 | 6.50 | 6.50 | 6.50 |
| 20010104 | 57.40 | 33.80 | 10.00 | 10.00 | 13.70 |
| 20010105 | 57.40 | 35.60 | 13.70 | 13.70 | 10.00 |
| 20010106 | 57.40 | 33.80 | 10.00 | 10.00 | 7.20 |
| 20010107 | 57.40 | 33.80 | 10.00 | 10.00 | 10.00 |
| 20020111 | 30.00 | 28.00 | 4.50 | 4.50 | 4.50 |
| 20020112 | 31.00 | 23.00 | 5.50 | 5.50 | 5.50 |
| 20020113 | 54.00 | 32.00 | 10.00 | 10.00 | 10.00 |
| 20020114 | 50.00 | 31.00 | 7.00 | 7.00 | 7.20 |
| 20020115 | 60.00 | 35.00 | 10.30 | 10.30 | 10.20 |
| 20020116 | 60.00 | 34.00 | 10.00 | 10.00 | 7.20 |
| 20020117 | 50.00 | 28.00 | 6.00 | 6.00 | 6.00 |
