Our Products

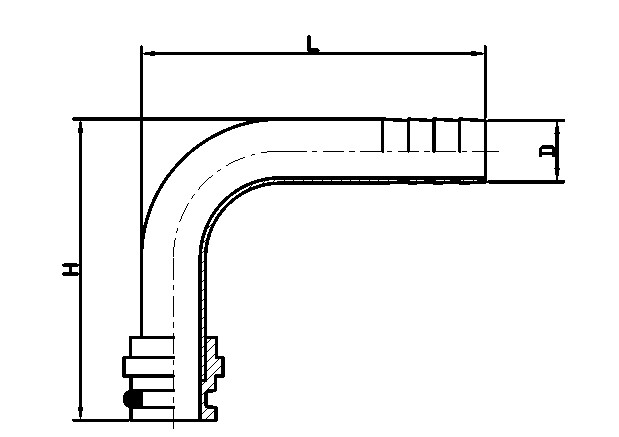

Barb Elbow Inlet
| Item No. | L, mm | H, mm | D, mm |
| 25100101 | 53.50 | 43.50 | 11.30 |
| 25100102 | 51.80 | 41.80 | 8.20 |
| 25020101 | 42.00 | 38.00 | 7.50 |
| 25020102 | 49.60 | 47.00 | 12.00 |
| 25020103 | 46.10 | 41.00 | 9.00 |
| 25020104 | 41.00 | 31.00 | 5.00 |
| 25020105 | 54.80 | 80.00 | 11.50 |
| 25020106 | 60.00 | 40.00 | 9.80 |
| 25020107 | 53.00 | 42.00 | 8.20 |
| 25020108 | 45.60 | 40.00 | 7.50 |
| 25020109 | 46.10 | 41.00 | 9.00 |
| 25020110 | 45.60 | 32.50 | 7.50 |
| 25020111 | 49.60 | 44.00 | 12.00 |
| 25020112 | 46.10 | 38.00 | 9.00 |
| 25020113 | 36.50 | 39.50 | 6.00 |
| 25020114 | 46.10 | 40.00 | 9.00 |
| 25020115 | 49.60 | 46.00 | 12.00 |
| 25020116 | 58.50 | 40.00 | 8.50 |
| 25040101 | 38.10 | 34.30 | 7.10 |
| 25040102 | 52.30 | 38.10 | 10.30 |
| 25020117 | 38.00 | 30.00 | 7.90 |
| 25020118 | 49.00 | 38.00 | 7.50 |
| 25020119 | 58.00 | 40.00 | 7.80 |
| 25020120 | 34.90 | 41.10 | 6.50 |
| 25020121 | 32.30 | 32.20 | 4.50 |
| 25020122 | 35.60 | 31.50 | 7.20 |
| 25020123 | 39.60 | 45.00 | 8.00 |
| 25020124 | 53.00 | 43.00 | 8.60 |
| 25010101 | 31.70 | 35.60 | 7.90 |
| 25010102 | 35.60 | 36.80 | 7.30 |
| 25010103 | 52.60 | 38.40 | 10.00 |
| 25010104 | 41.70 | 32.50 | 7.30 |
| 25010105 | 48.80 | 31.50 | 10.00 |
| 25020125 | 39.00 | 46.80 | 8.80 |
| 25020126 | 37.50 | 34.50 | 6.00 |
| 25020127 | 40.00 | 44.00 | 9.00 |
| 25020128 | 42.50 | 39.50 | 7.50 |
| 25020129 | 45.00 | 45.00 | 10.00 |
| 25020130 | 40.70 | 48.70 | 8.00 |
| 25020131 | 37.80 | 47.00 | 9.80 |
| 25020132 | 37.40 | 34.00 | 7.00 |
| 25100103 | 51.70 | 41.70 | 8.40 |
| 25100104 | 37.90 | 29.90 | 7.80 |
| 25100105 | 53.00 | 43.00 | 11.00 |
