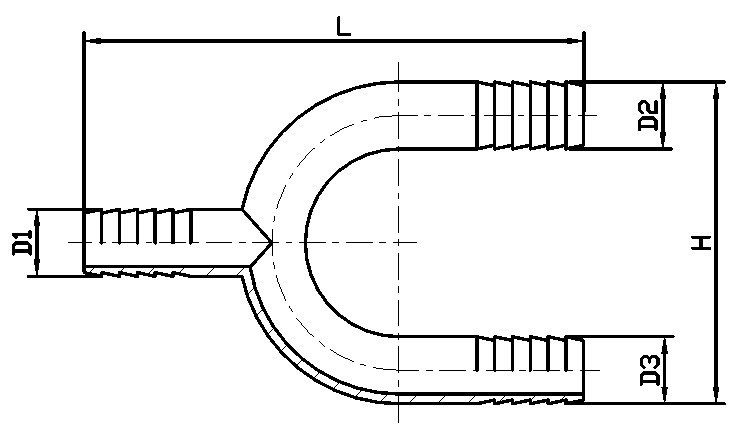

U Bend Manifold
| Item No. | L, mm | H, mm | D1, mm | D2, mm | D3, mm |
| 21020101 | 65.00 | 32.00 | 10.20 | 7.20 | 7.20 |
| 21010101 | 67.30 | 32.80 | 7.20 | 7.20 | 7.20 |
| 21020102 | 65.00 | 34.00 | 7.20 | 7.00 | 7.00 |
| 21010102 | 74.90 | 47.80 | 10.00 | 10.00 | 10.00 |
| 21010103 | 73.20 | 47.80 | 7.20 | 10.00 | 10.00 |
| 21020103 | 75.00 | 40.00 | 7.20 | 10.00 | 10.00 |
| 21020301 | 68.00 | 38.00 | 7.20 | 7.20 | 7.20 |
| 21020302 | 75.00 | 30.00 | 7.20 | 10.00 | 10.00 |
| 21020104 | 73.00 | 49.70 | 10.00 | 10.00 | 10.00 |
| 21020105 | 68.00 | 40.00 | 6.60 | 10.00 | 10.00 |
| 21020106 | 71.00 | 40.00 | 10.30 | 10.30 | 10.30 |
| 21020107 | 65.00 | 32.00 | 9.00 | 7.00 | 7.00 |
| 21020108 | 65.00 | 32.00 | 10.20 | 7.20 | 7.20 |
| 21020109 | 106.00 | 86.00 | 13.00 | 13.00 | 13.00 |
